EonStor GS Entry Level

Unified Storage

Cost-effective General Purpose Solution
HA enterprise NAS/SAN storage with hybrid cloud

- Flexibility I/O Host Board
- Flexibility Expansion Enclosure
- Flexibility Opened Drive Policy
- High Availability Solution
- Up to Random Read IOPS 300K
- Up to MBPS throughput (R/W) 9,900/4,800
- Target Application: Office File sharing Integration, File Backup

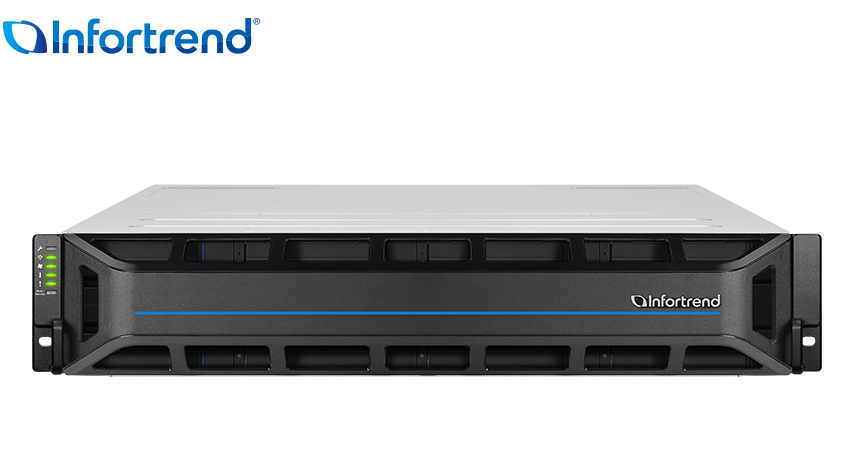

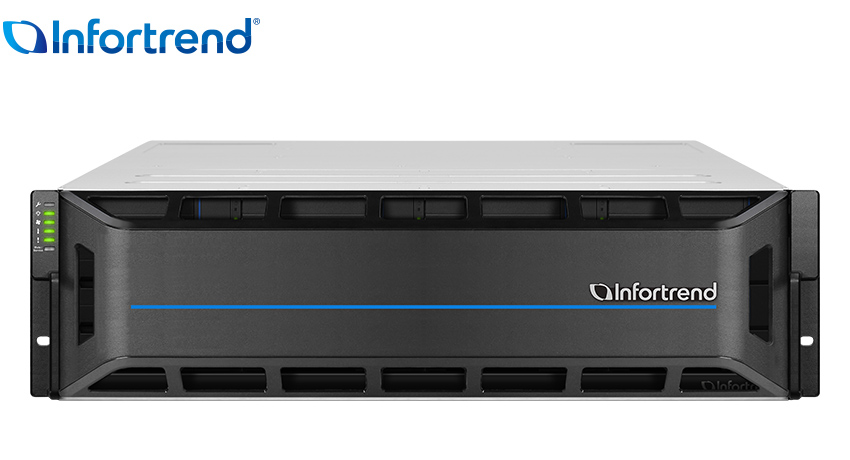

Form Factor: 2U 12-bay, 2U 24-bay, 3U 16-bay, 4U 24-bay
Controller: Dual-redundant or single
Cache Backup: Super capacitor + Flash module
RAM: up to 128GB

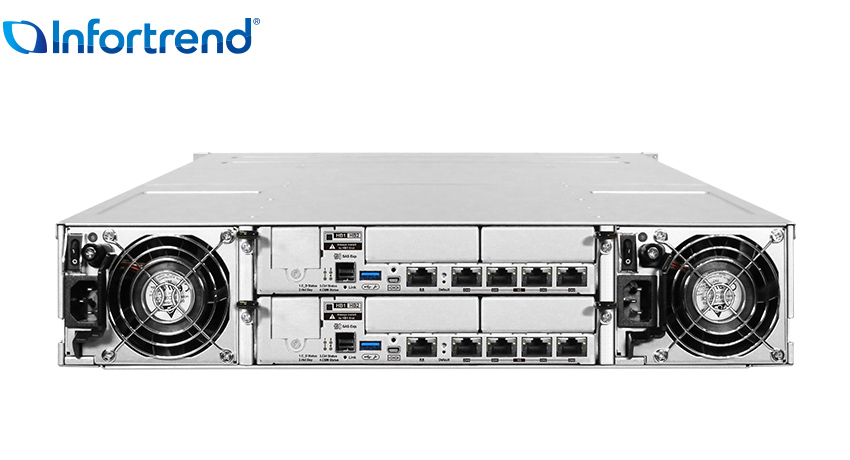

Onboard host ports:
1GbE RJ-45 x8 & 12Gb/s SAS x2 ports
More host options:
16Gb/s FC x 4, 32Gb/s FC x 2 or 4
1GbE (RJ-45) x 4, 10GbE (RJ-45) x 2
10GbE (SFP+) x 2, 25GbE (SFP28) x 2
40GbE (QSFP+) x 2, 12Gb/s SAS x 2
Supported Drives:
2.5" SAS or SATA SSD/HDD, 3.5" SAS or SATA HDD
Max. Drive Number:
Per appliance 896 (via expansion enclosure)
Per cluster 3,584 (via scale-out with other series of appliances)
Default software features include:
SED (self-encrypting drives)
Thin provisioning
Scale-out (file-level): 1 appliance per cluster
Scale-out (block-level): 4 appliances per cluster
Snapshot (block-level): 64 per source volume, 128 per pool
Local replication: 4 per source volume, 16 per system
Remote replication (file-level): support Rsync with 128-bit SSH encryption
Optional software features require additional license:
SSD cache
Automated storage tiering: 4 tiers per pool
Advanced scale-out (file-level): 4 appliances per cluster
Advanced snapshot (file-level): 1,024 per folder
Advanced snapshot (block-level): 256 per source volume, 4,096 per pool
Advanced local replication: 8 per source volume, 256 per system
Advanced remote replication (block-level): 8 per source volume, 64 per system
File-level protocol: CIFS/SMB, NFS, AFP, FTP/FXP, WebDAV
Block-level protocol: FC, iSCSI, SAS
Object-level protocol: RESTful API
EonCloud Gateway supports integration with:
Amazon S3, Microsoft Azure, Alibaba Cloud,
Google Cloud, Baidu Cloud, Tencent Cloud, OpenStack,
Wasabi, Yandexhi Cloud
Power supplies: Redundant and hot-swappable
